How To: Tiered Ruffle Maxi Dress

photo TieredRuffledDIYDress3_zpsiblfp6ej.jpg
Something weird is going on, this is the second red piece I've made in the past 8 months. The story is, I was in India on a work trip, and had dreamt up magnificent excursions to miles and miles of fabric markets.. Until I heard they are all in Delhi, not Mumbai where I had landed. I swallowed my disappointment - BUT one evening, looking for a restaurant I stumbled upon a single hole-in-the-wall store (other places have hole-in-the-wall bars, India has hole-in-the-wall fabric shops). Obviously I had to buy something, and I have no clue why that something ended up being 5 meters of this oxblood crêpe. I figured I might as well experiment with some Zac Posen/Rachel Zoe -ish ruffled hemming.

Tutorials take a lot of time & effort to create, and I choose to make mine available for free. If you enjoy this guide, you can support me with a donation that feels right for you, here.

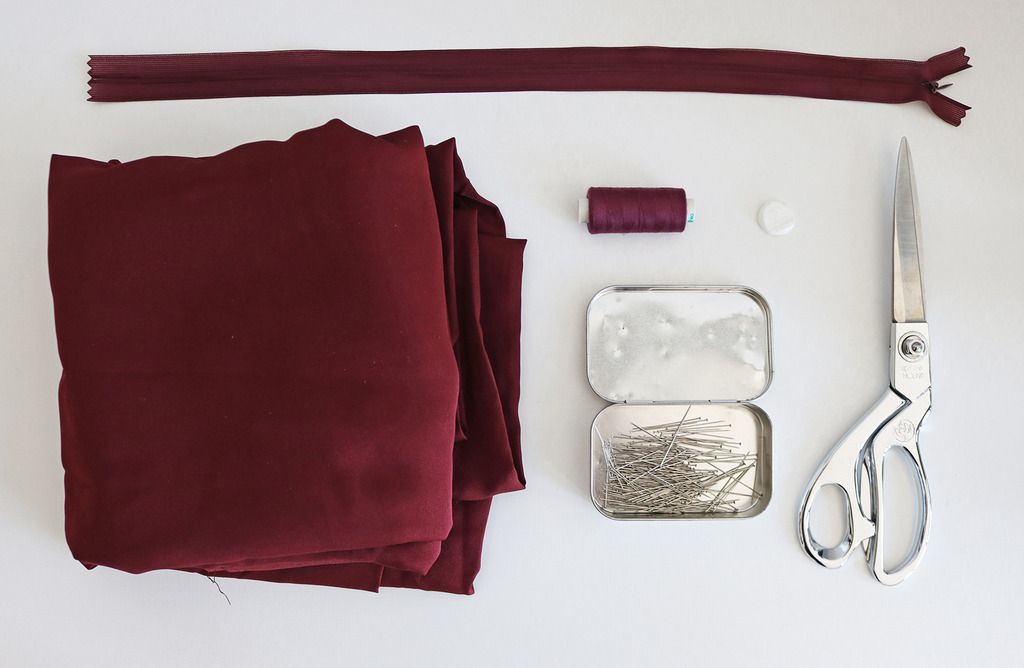

photo 0 Tools_zpswbyfwlik.jpg
Fabric (so many kinds would work, cotton, batiste.. Depending on how much drape you want. I used crêpe), about 5  |  Pins  |  Fabric marker  |  Scissors  |  Thread, sewing machine  |  Invisible zipper (about 40 cm)  |  Ribbon for the straps or a long piece of string to help make them

I. I started with the skirt, but cutting the first two tiers for the ruffles. Here's how I did my math: I wanted the first tier that starts from the waist to be less gathered. So I took my waist measurement, added 10 cm (did't want the dress to fit too snuggly at the waist), and multiplied that by 1.4. The result was 112 cm. I took that number, and to get the length of the next tier of ruffle, multiplied it by 1.6 (since I wanted more fullness in the ruffle there). Result was 180 cm. Later down the road I cut the final third tier of ruffle based on the same logic; 180 cm x 1.6 = 288 cm in length. The width of these pieces will depend on how long the dress should be, for me they were 32 cm + 36 cm + 47 cm, minus an approx. 1 cm seam allowance for each piece, got me the total skirt length of 109 cm.
photo 1 First two ruffles_zpseeyiu8as.jpg

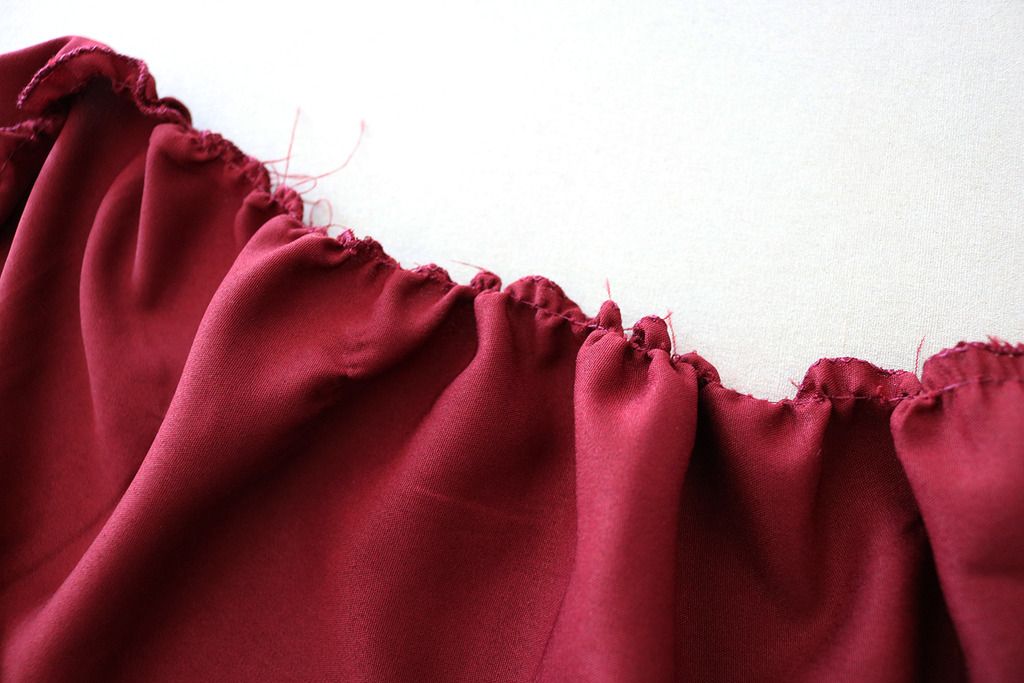

II. After zig-zagging the edges of the rectangles, I added my basting stitch (longest stitch on your machine) to one long edge of the first ruffle. Then pulling on the bobbin thread, gathered it until it corresponded to the desired waist circumference + a couple cm for seam allowances. When gathered it looked like this:
photo 2 Gathered_zpsexfywex5.jpg

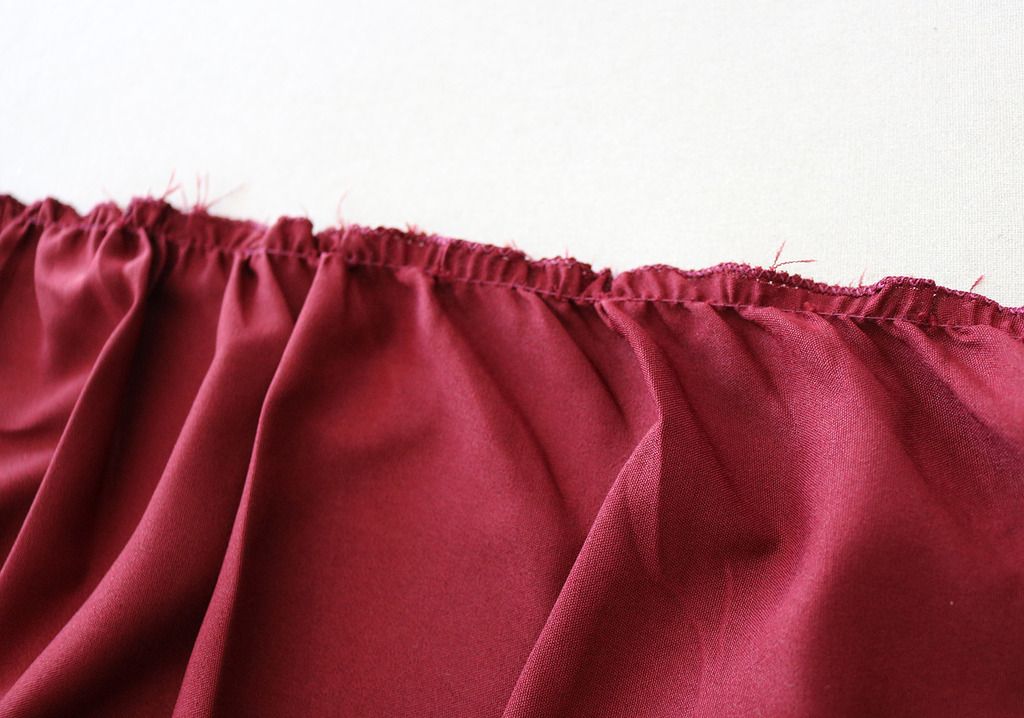

.. And once I pressed the gathers with my iron, the situation was much better to work with:
photo 3 Gathers pressed_zpsyagdyb0q.jpg

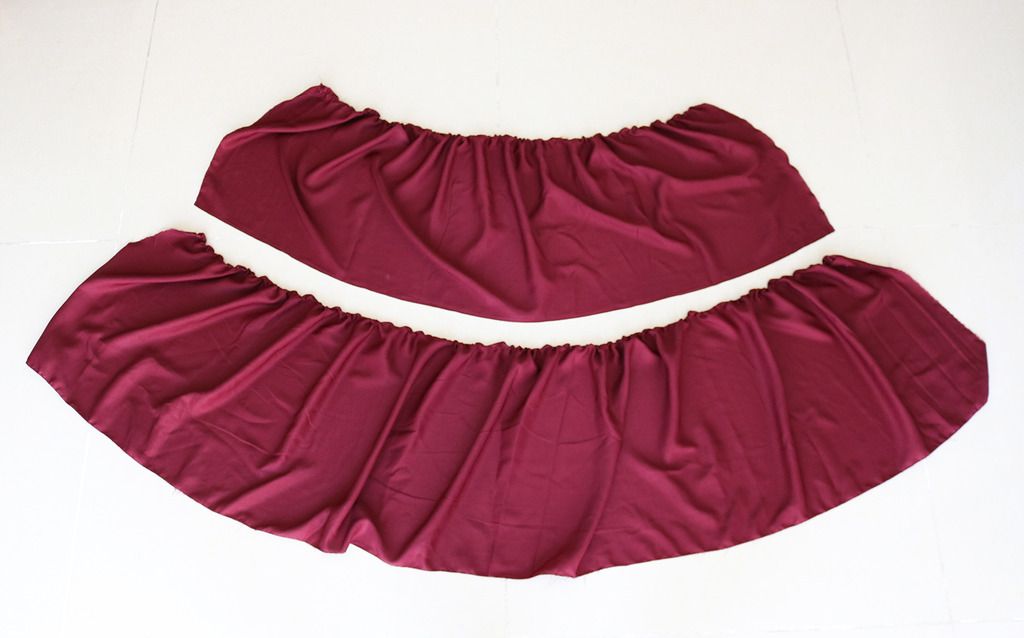

III. I repeated that for the second piece, gathering just enough to match the un-gathered lower edge of the first ruffle. Pinned those right sides facing and sewed together.
photo 4 Two first layers gathered_zpsm3fap0ws.jpg

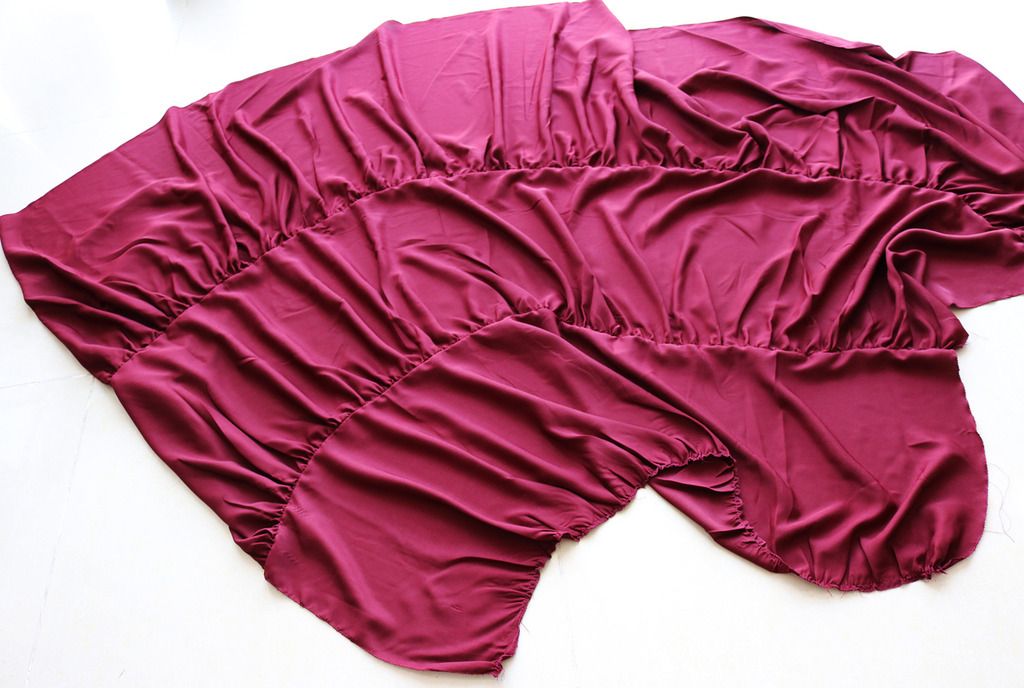

IV. Then I repeated the same process for the third tier of ruffle. See step I for the measurements. That's the skirt part done, minus hemming which you could do now or at the end.
photo 5 Ruffles attached_zpspppwagiy.jpg

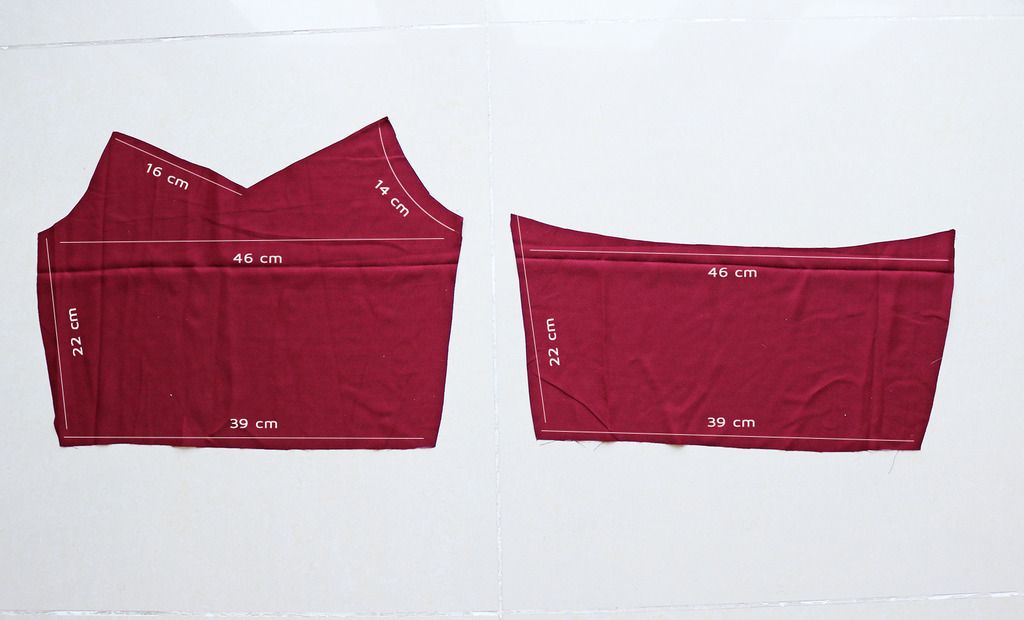

V. Next up was the top. I cut the pieces out as follows..
photo 6 Cut top pieces_zpsjy3tsibr.jpg

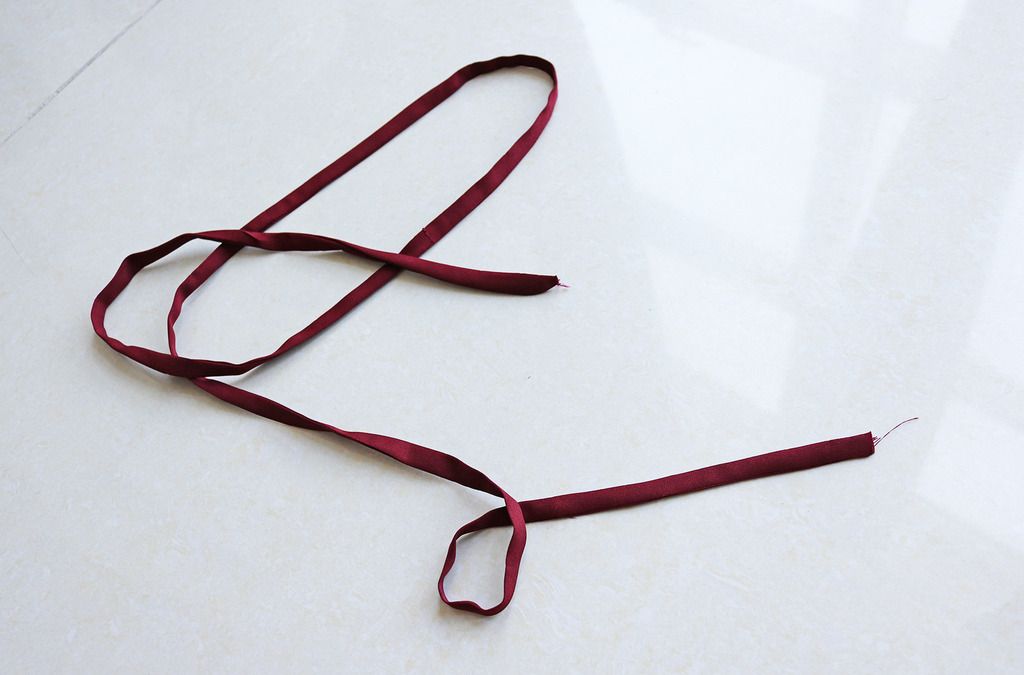

.. And made some string for the straps like this (if you need a video on this method, this one's pretty good). I made 1 m of strap.
photo 7 Strap_zpsjac0oscu.jpg

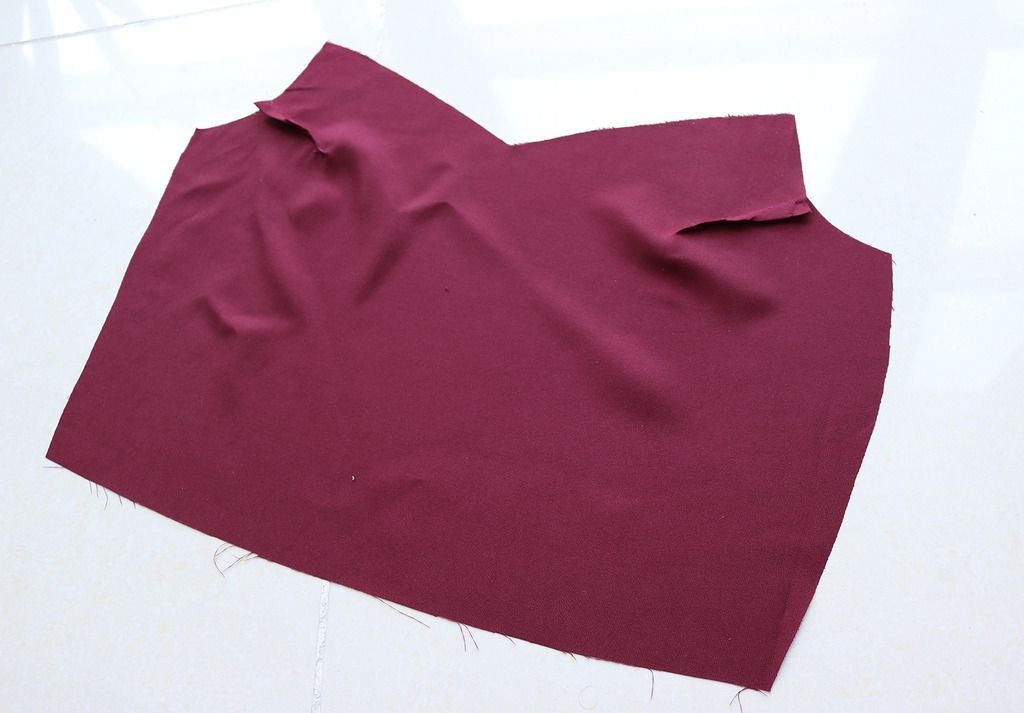

VI. Added some darts to the top for shape:
photo 8 Darts_zps7e1xrcuc.jpg

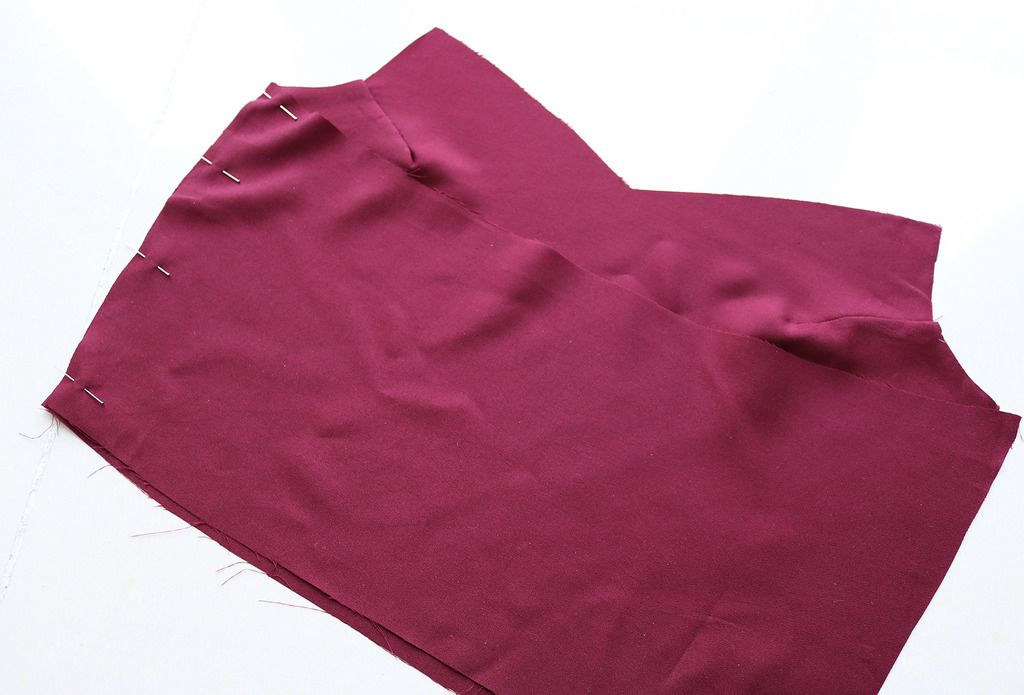

VII. Then pinned the top front and back pieces along one side, right sides facing, and sewed down. Then zig-zagged all the raw edges.
photo 9 Sew side_zpsbwbek3hg.jpg

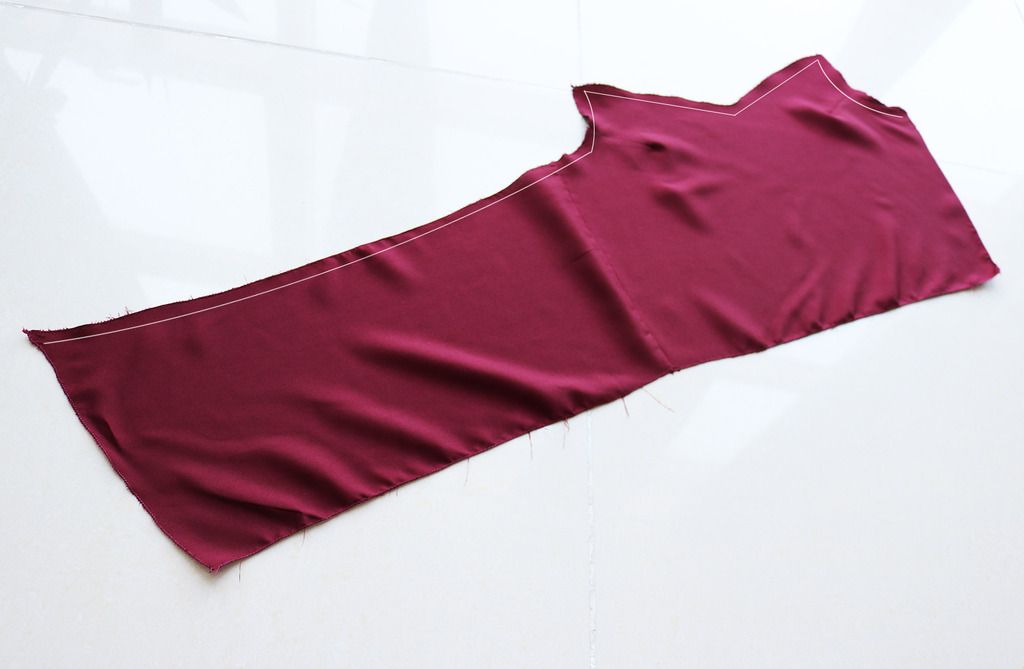

VIII. To make the little ruffle for the top, I measured the length of the distance it had to cover (shown below with white line)..
photo 10 Raw edges zig-zagged_zpssr59cxzm.jpg

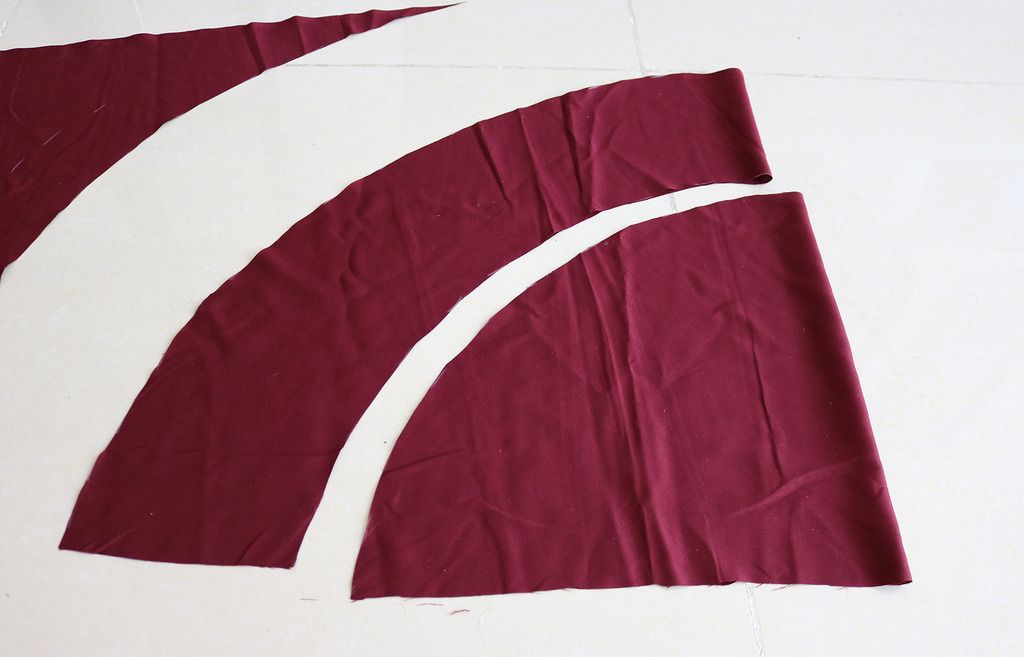

.. And plugged that into the circle skirt calculator as if I were making a half-circle skirt. I then folded the remaining fabric to mark the radius + another line to mark the length of the ruffle (mine was about 15 cm).
photo 11 Cut Ruffle_zpsmzbpdplb.jpg
Once cut out, I zig-zagged all the raw edges and hemmed the longer one with a single fold, which I hand-stitched in place. Looking back I should've done a double fold - when worn, I noticed that the ruffle tends to fly around in the wind a lot, so a double-folded hem would have been cleaner..
photo 12 Ruffle hemmed_zpsabufsirr.jpg

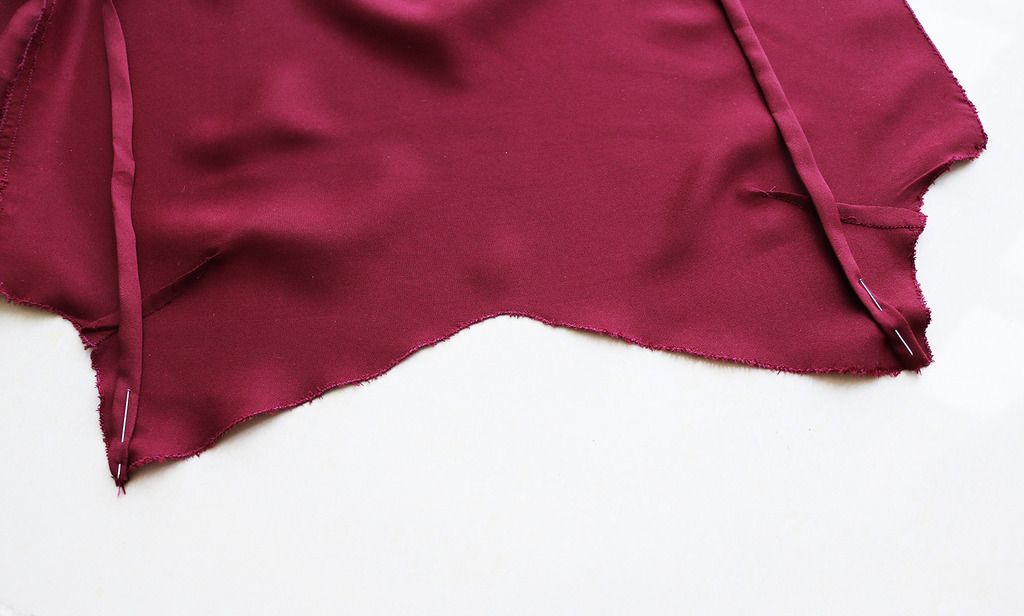

IX. To attach the straps, I pinned them in their spots on the reverse side of the front piece of the top..
photo 13 Attach straps_zpsfpmemk3e.jpg

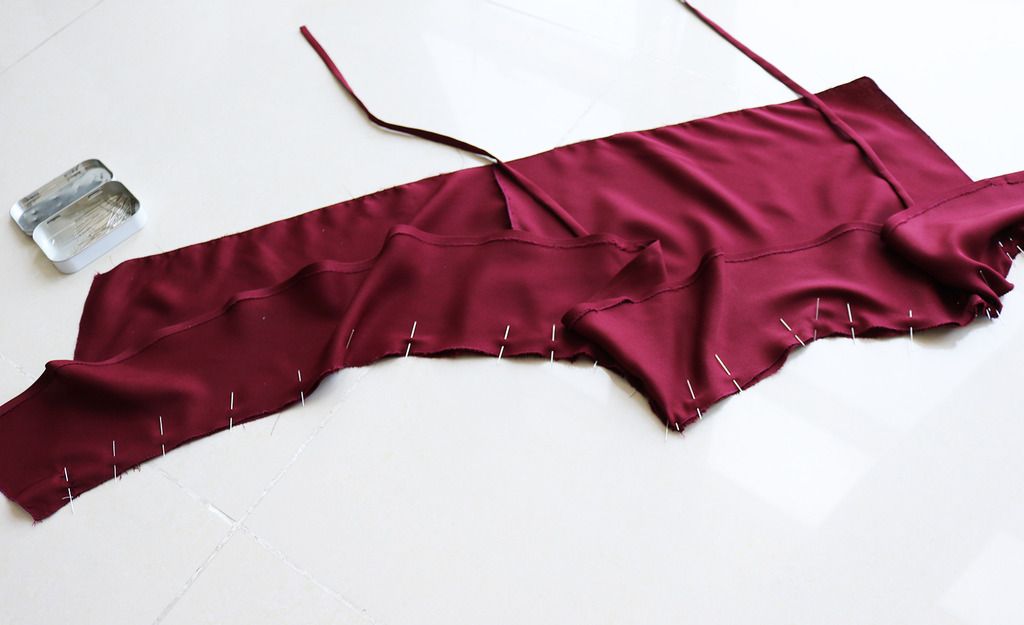

.. And then proceeded to pin the ruffle in place, right side of the ruffle to the reverse side of the top.
photo 14 Pin ruffle to top_zpswjabahze.jpg

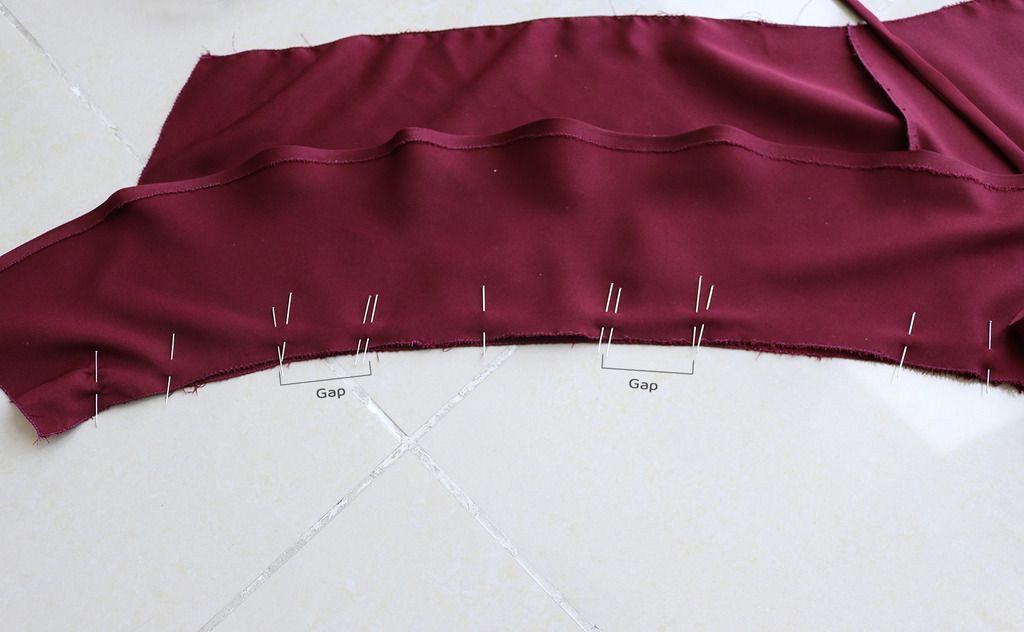

I never know how long I want the straps to be until I try on the almost-ready garment, so I like to mark two spots on the back piece with double pins, to leave gaps in the stitch for where the straps will eventually go.
photo 15 Gap in stitch_zpsiacvc1nz.jpg

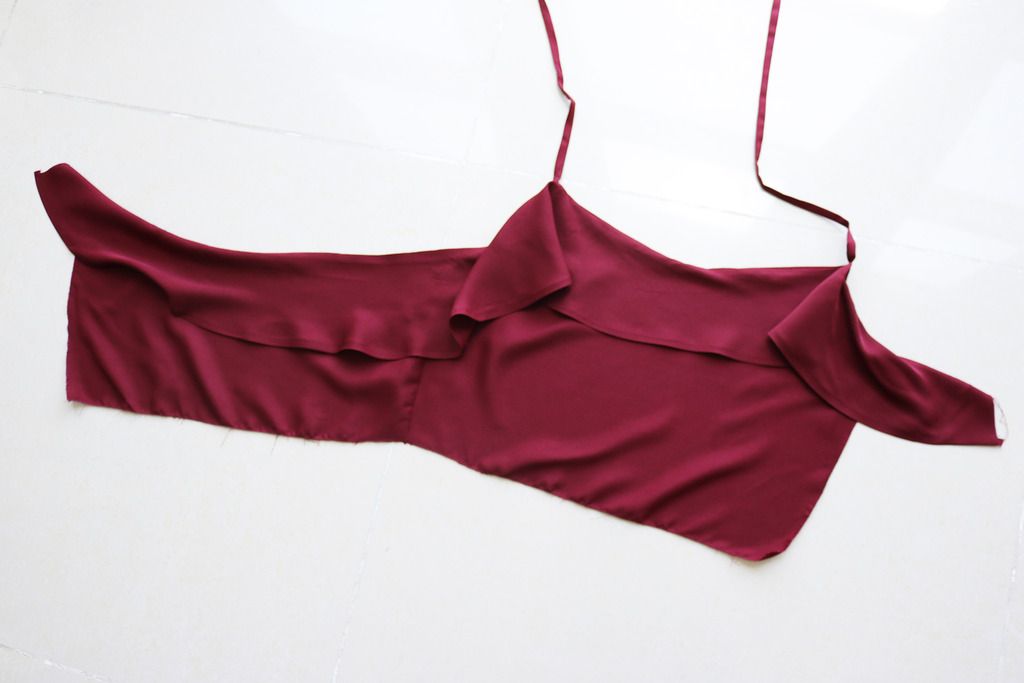

Then just sewed the ruffle in place, flipped it onto the right side, and pressed.
photo 16 Top done_zpsaznyphgn.jpg
X. So close! Pinned the top to the skirt, right sides facing, and sewed those together.
photo 17 Pin top to skirt_zpspptbp5rn.jpg
XI. And finally added my invisible zipper to the open side. This lady does a good job explaining how to do this if you don't have an invisible zipper foot handy.
photo 18 Add zipper_zpszzwghd6k.jpg
XII. Lastly I sewed the edges of the neckline ruffle together, and tried the dress on to confirm the length of the straps (I made them cross at the back - 45 cm each), slipped them through the gaps I had left when sewing the ruffle, and closed the gaps in the stitch. Since I had fabric leftover, I made a matching belt to tie around the waist.
photo TieredRuffledDIYDress4_zpsyj2o1omp.jpg photo TieredRuffledDIYDress6_zps6h5amyah.jpg photo TieredRuffledDIYDress_zpsmfyy9vbc.jpg
